Automatic Welded Mesh Machine

Automatic welded mesh machine is a new type welded wire machine and which is researched and developed by our factory.

This equipment is mechatronic welding machine, do without cutting edges which save material, adjustable of distance of warp thread, when input the distance of weft thread to computer, any character can be reach.

Main usage: Welding of fence mesh for railway, highway, bridge and building.

This machine main parameter:

  1. Measurement (L × W × H): 8480 mm × 3160 mm × 1700 mm, weight: 4.2 T.
  2. Max. welding width: 2.5 m.
  3. Thread diameter: 2.5 mm - 6 mm.
  4. Adjustable electromagnetism motor: 4.0 KW.
  5. Power: 380 V.
  6. Capacity: 80-200 KW.
  7. Adopt automatic welding by software, reduce the demand for electricity and pollution of electric grid.
  8. Product support: Net repair welding machine & component /installation kit.

The other names and types automatic welded machine:

Name and type FHD-3300(φ4 - φ12) FHD-2600(φ4 - φ12) FHD-2600(φ4 - φ12) FHD2000(φ2 - φ5)
type (φ4 - φ12) (φ4 - φ12) (φ5 - φ12) (φ2 - φ5)
Longitude distance ≥ 50 mm random ≥ 50 mm random ≥ 50 mm random ≥ 30 mm random
Woof distance ≥ 40 mm random ≥ 40 mm random ≥ 40 mm random ≥ 30 mm random
Mesh width ≤ 3500 mm ≤ 2600 mm ≤ 2600 mm ≤ 2000 mm
Mesh length random random random random
Welding speed 20-30/MIN. 20-30/MIN. 1-3second/woof 30-40/MIN.
Transformer Capacity 63 kVA × 12 C03 KVA × 9 63 KVA × 12 63KVA × 3

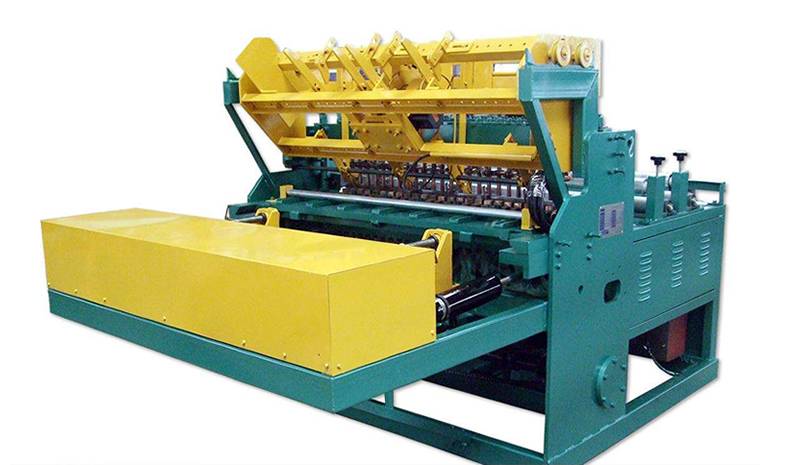

An automatic welded mesh machine on the ground.
