Concertina Barbed Wire – Alternative to Concertina Razor Wire
CBW-01: Concertina barbed wire has spiral shape and is connected by clips.
Concertina barbed wire has a similar structure with concertina razor wire. It is the alternative to the concertina razor wire. Concertina barbed wire is made of high quality galvanized steel wires or stainless steel wires with single strand and four point barbs. Connecting the neighbor two spiral with clips forms the concertina barbed wire. The concertina barbed wire has similar applications with concertina razor wire, which is widely used to secure the safety of residences, prisons, military sites and other places.
Specifications of concertina razor wire
- Line wire
- Wire diameter: 3.0 mm ± 0.05 mm.
- Tensile strength: 1235 N/m2.
- Galvanization: 275 g/m2.
- Barb
- Wire diameter: 2.0 mm ± 0.05 mm.
- Tensile strength: 350 N/m2.
- Length of barbs: 13 mm – 20 mm.
- Distance between barbs: 60 mm ± 16 mm.
- Galvanization: 240 g/m2.
| Item | Coil diameter | Spiral turns per coil | Clips per spiral | |
|---|---|---|---|---|
| Before stretching (mm) | After stretchin (mm) | |||
| CBWP-01 | 300 | 260 | 33 | 3 |
| CBWP-02 | 450 | 400 | 54/55 | 3 |
| CBWP-03 | 730 | 600 | 54/55 | 3 |
| CBWP-04 | 730 | 620 | 54/55 | 3 |
| CBWP-05 | 980 | 820 | 54/55 | 3 |
| CBWP-06 | 980 | 850 | 54/55 | 3 |
| CBWP-07 | 1250 | 1150 | 54/55 | 3 |
Features of concertina barbed wire
- High strength.
- Corrosion and rust resistance.
- Easy to install and uninstall.
- Wide range of application.
- Used with wire mesh fences or use individually for safety.

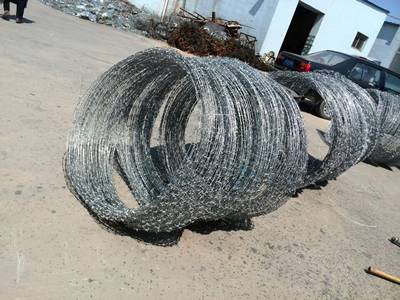

CBW-02: Concertina barbed wire waiting for wrapping.

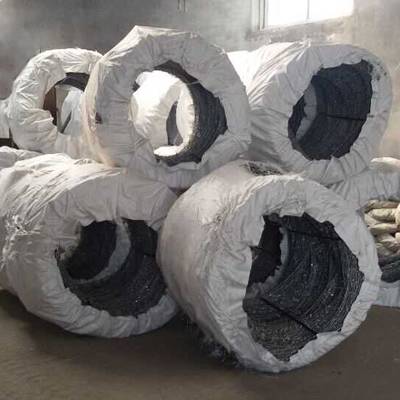

CBW-03: Concertina barbed wire waiting for package.

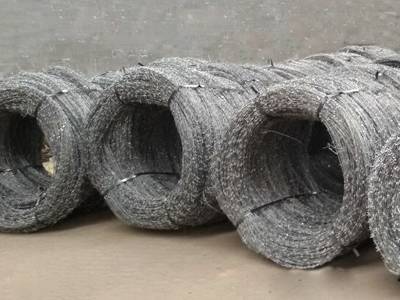

CBW-04: Concertina barbed wire in the warehouse and waiting for loading.

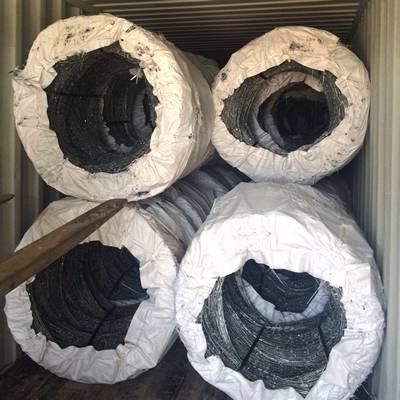

CBW-05: Concertina barbed wire loading.
