Electric Fencing Post - High Strength and Long Service Life

Electric fencing is widely used in farms, loafing areas and residences for cattle, sheep or other animal rearing. Electric fencing post is an important parts among the entire electric fencing system. The electric fencing post can holding the electric lines and secure the animals in the area without hurting them. Here are two types of electric fencing post, just refer to them and choose the perfect one.

Pigtail post

A white pigtail post is fastened on the grassland with a electric line in the pigtails.
EFP-01: Pigtail post is widely used for securing electric lines.

Pigtail post, as its name says, the shape is similar to the pig tail. It is a lightweight temporary fencing, which is quick and easy to install. The pigtail post is made of spring steel, which has high tensile strength to withstand the high impact from animals or external forces. The top of pigtail post is covered with various colors of plastic insulation for added visibility. Additional, only the plastic insulation can be used in the electric fencing safely.

The loop at the top of pigtail post can support all wires, including poly wire, poly tape and rope electric fences. This lightweight post is ideal for temporary and electric fence enclosures or permanent line wire grazing applications in a variety of heights.

Structure of pigtail post

  • Galvanized or spring steel pigtail post. High tensile strength and corrosion resistance for durable life.
  • Plastic insulated loop. Insulated loop at the top of post for simple and quick wire insertion and safely in electric fence..
  • Foot steps. Welded foot step holds the post securely onto the ground. The foot steps can be metal plate or steel wire rod.
  • Sharp bottom ends. Make the installation of pigtail post fast and easy.
A PVC painted pigtail post with steel wire rod step and a galvanized pigtail post with steel plate step.
EFP-02: Steel wire rod and steel plate step types for your choice.

Specifications of pigtail post

  • Material: spring steel post and plastic insulated top.
  • Surface treatment: electric galvanized or hot dipped galvanized.
  • Length: 0.96 m – 1.5 m.
  • Steel spike diameter: 6.0 mm – 8.0 mm.
  • Color: white, green, black, orange, yellow or other colors you want.

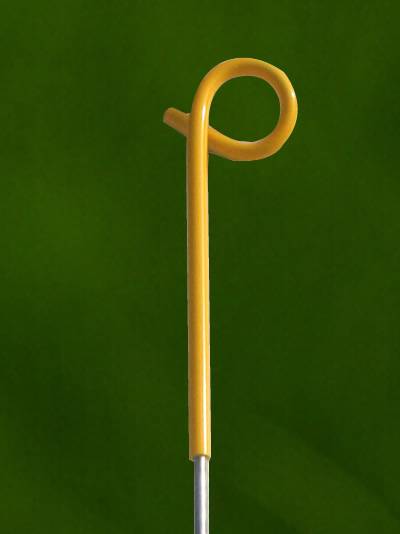

A yellow color pigtail post on the white background.
EFP-03: Yellow color pigtail post.

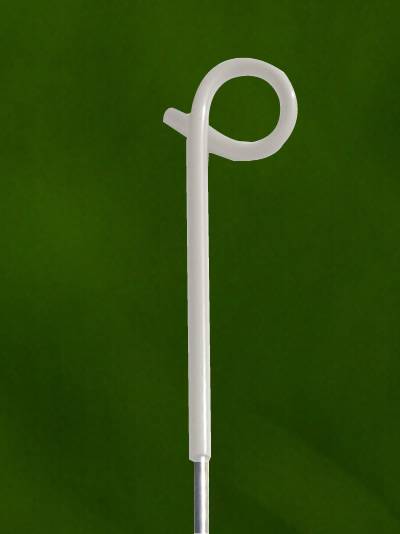

A white color pigtail post on the white background.
EFP-04: White color pigtail post.

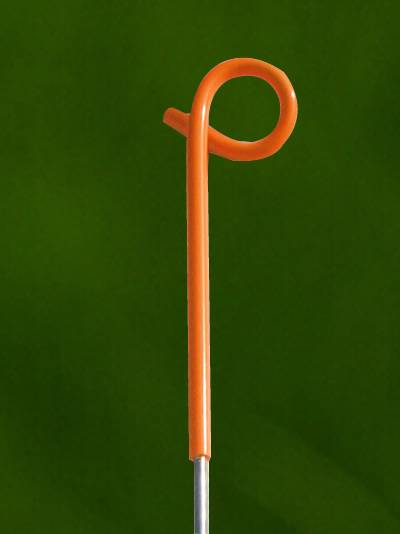

An orange color pigtail post on the white background.
EFP-05: Orange color pigtail post.

Features of pigtail post

  • Stability and longevity.
  • High tensile strength to withstand the high impact from animals or external force.
  • UV stabilized plastic supplies effective insulation.
  • Various plastic colors can supply maximum visibility.
  • Step design makes the installation easy and fast.
  • Portable design to be used for temporary or permanent applications.
  • Suitable for using in the large animal fencing, for example cows, horses.

Installation of pigtail post

  • In the soft ground.
    • Place post at desired locations.
    • Step on the welded staples to push the pigtail post into the ground.
    • Adjust the pigtail post into your required height.
  • In the hard or dry ground.
    • Drill several pilot holes in the ground for convenient placing of pigtail post.
    • Place the pigtail post into the holes.
    • Fill the hole with soil.
    • Tamping the ground at the post base for stability and solidness.
  • Note:
    • Use a level to ensure the post is plumb.
    • Be careful that don't disturb the post alignment during tamping.

Applications of pigtail post

  • The pigtail post, equipped with various colors of plastic insulation, is widely used in farming for strip grazing and electric fencing.
  • Pigtail post is widely used in the soil, grass or other soft ground occasions, such as:
    • School ovals.
    • Sporting fields.
    • Landscaping area.
    • Farms.
    • Other places need to be cordoned off.

PP electric fencing post

A white color PP electric fencing post is holding an electric line.
EFP-06: PP electric fencing post is widely used for holding electric lines.

For an entire electric fencing system, electric fence post is one of the most important component because it supports and connects fencing tapes, ropes or electric wires. The PP electric fencing post has high strength to be used for specific type of animals you are trying to protect.

PP electric fencing post is made of high quality polypropylene materials, which has outstanding UV resistant performance and anti-corrosion performance. The structure of PP electric fencing post is PP fence post body, fastening hooks, installing steps and metal spikes. The installing steps can be single foot or double foot for your choice. And the spike is made of 82B spring steel, which has high tensile strength.

Specifications of PP electric fencing post

  • Material: high quality polypropylene.
  • Spike material: 82B spring steel.
  • Spike diameter: 8 mm.
  • Post length: 3', 4', 5', 6' and so on.
  • Color: white, green, black, orange and other colors based on RAL colors.
  • Step type: single step or double steps.

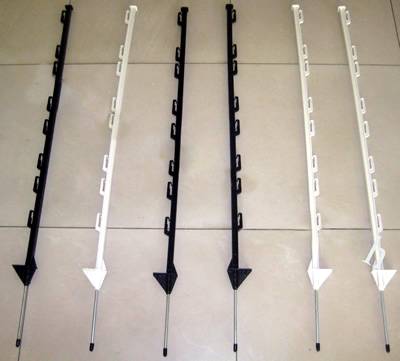

Six white and black colors PP electric fencing posts with single step on the ground.
EFP-07: Single foot PP electric fencing post.

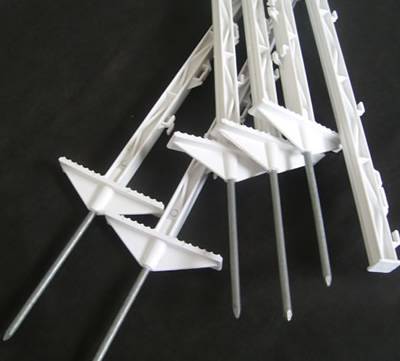

Six white color PP electric fencing post with double steps on the black background.
EFP-08: Double-foot PP electric fencing post.

Features of PP electric fencing post

  • Outstanding UV resistance performance.
  • Corrosion and rust resistance.
  • Hooking parts for easy and convenient fastening wires or electric fencing.
  • Single or double steps for easy installing and fixing of PP electric fencing post.
  • Various colors for warning and suiting for the surrounding environments.
  • Durable and long lasting.
  • Electric insulation.
A blue color PP electric fencing post with sharp bottom ends.
EFP-09: Sharp bottom ends is convenient for installing into ground.

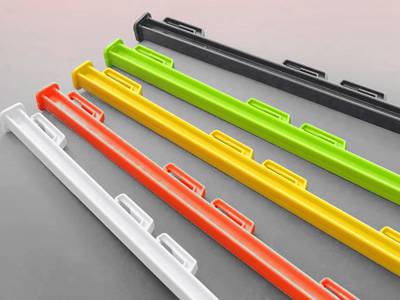

Five different colors of PP electric fencing posts on the white background.
EFP-10: PP electric fencing post has various colors for choice.

Package of PP electric fencing post

All of the PP electric fencing post are perfect packed to ensure the good condition during long time transportation.

The commonly package is carton, pallet and plastic film.

  • 50 pieces fence posts per carton.
  • 100 pieces fence posts per carton.
