Welded Wire Lath for Interior Plaster and Exterior Stucco
Galvanized welded wire laths, flat or self-furring, with or without backing, reinforced or not reinforced, are all in our manufacture range. Welded wire lath is designed for use as a base to receive cement-based interior plaster and exterior stucco. Our welded wire lath complies with standard ASTM C933-14.
Self-furring crimps on self-furring lath is not less than 1⁄4 in. (6 mm) from the plane of the back of the lath.
The backing is either absorptive or water resistant. The backing has a bursting strength of not less than that required to maintain integrity under normal hand- or machine-application pressures.
The backing is attached to the lath to prevent accidental removal during shipping, handling or installation. Attachment of the backing allows lapping of wire-to-wire and backing-to-backing of not less than one mesh at ends and edges and permits full embedment, in not less than 1⁄4 in. (6 mm) of plaster, of not less than one-half of the total length and width of the wire.

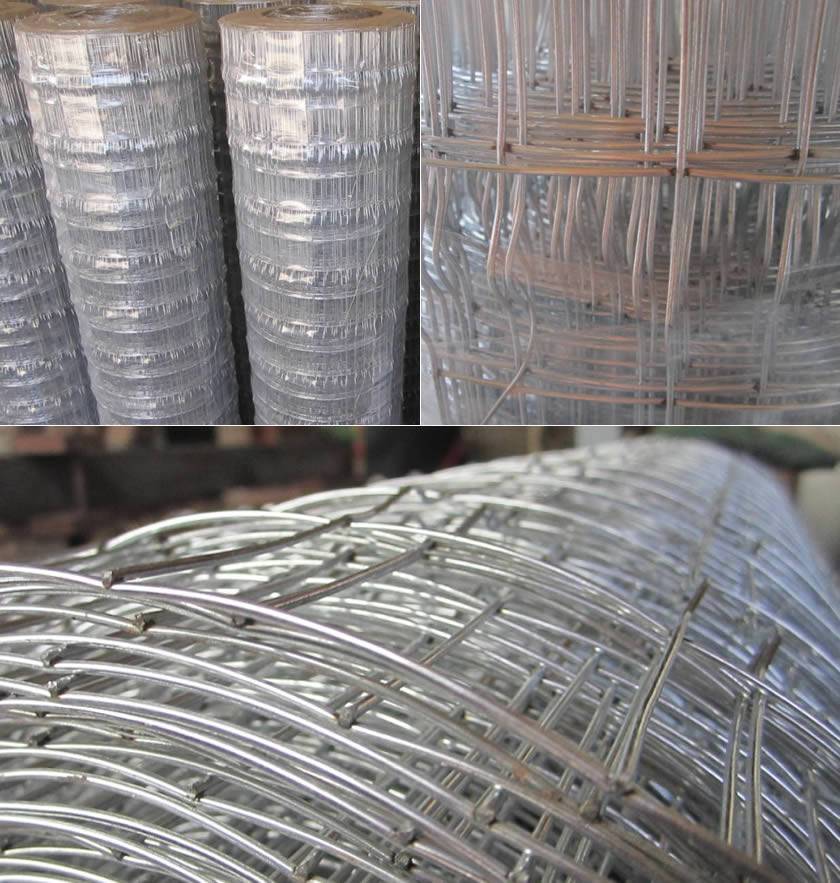

WWL-01: Welded wire lath with galvanized coating is a ideal material as a base for interior plaster and exterior stucco.
Dimensions and Permissible Variations
Welded wire lath and reinforced lath specifications as table 1, Table 2, Table 3, and Table 4.
| Wire diameter | Materials | Surface finish |
|---|---|---|
| 0.0625 in. (1.588 mm) | cold-drawn steel wire | zinc coating conforming to specification A641/A641M |
| Mesh opening size | Thickness | Width | Width variation | Length | Length variation | Weight | |
|---|---|---|---|---|---|---|---|
| Sheets | Rolls | ||||||
| not more than 2 in. (51 mm) by 2 in. (51 mm) | 1⁄8 in. (3.2 mm) ± (0.8 mm) | 28 in. (700 mm) to 54 in. (1370 mm) | 0.748 in. (19 mm) | No less than 48 in. (1200 mm) | No more than 150 ft (45.720 m) | 0.748 in. (19 mm) | 1.14 lb/yd2 (0.618 kg/m2) |
| Wire diameter | Materials | Surface finish |
|---|---|---|
| 0.072 in. (1.9 mm) to 0.1205 in. (3.1 mm) | cold-drawn steel wire | zinc coating conforming to specification A641/A641M |
| Mesh opening size | Width | Width variation | Length | Weight | |||
|---|---|---|---|---|---|---|---|
| sheets | Rolls | variation | |||||
| 2 in. (51 mm) by 2 in. (51 mm) to 6 in. (150 mm) by 6 in. (150 mm) | 28 in. (700 mm) to 54 in. (1370 mm) | 0.748 in. (19 mm) | No less than 48 in. (1200 mm) | No more than 150 ft (45.720 m) | 0.748 in. (19 mm) | 1.95 lb/yd2 (1.058 kg/m2) | |
Packaging
- Welded wire lath shall be packaged in bundles, rolls, or pallets.
- Bundles, rolls, or pallets all marked with metal tags or paper tags.
- Plastic or metal banding, or paper wrapping on rolls.
