T Studded Post - Galvanized, Black Bitumen and PVC Coated

A cross section of T studded post on the ground.
TSP-01: Nubs along the post is convenient for fence installing.

T studded post, similar to the T post, has a T shaped cross section. T studded post, different from T post, which has holes on the surface, has a studded surface. It is made of hot rolled steel or low carbon steel and then painted or coated with anti-corrosion surface. Spades are welded onto the post to increase holding power and grip the earth firmly. T studded post is widely used for supporting various wire mesh fence panels, it can also be used to raise the plants growing up and climbing.

Specifications of T studded post

  • Material: high strength hot rolled steel or low carbon steel.
  • Surface treatment: galvanized, black bitumen coated, oven-baked enamel paint or PVC coated.
  • Color: galvanized, green or black.
  • Thickness: 2 mm – 6 mm for choice.
  • Weight: 0.95 lbs/ft, 1.08 lbs/ft, 1.25 lbs/ft and 1.33 lbs/ft.
  • Length: 4' to 10'.
  • Package: 10 pieces per bundle and 50 bundles per pallet.

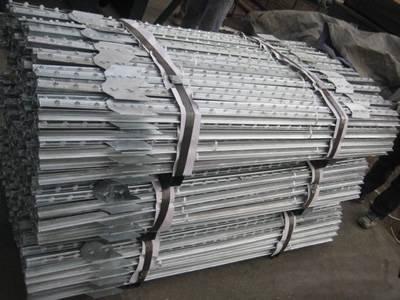

Three bundles of galvanized T studded posts on the ground.
TSP-02: Galvanized T studded post.

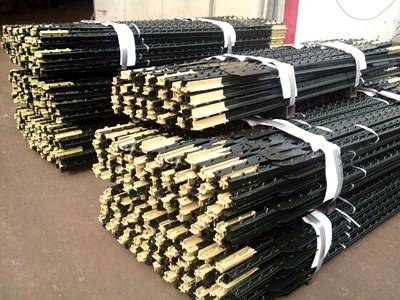

Several bundles of black bitumen coated T studded posts on the ground.
TSP-03: Black bitumen coated T studded post.
Three bundles of green color PVC coated T studded posts.
TSP-04: PVC coated T studded post.
T studded post specifications
Item Weight
(lbs/ft)
Length Application type Quantity
(pcs/mt)
TSPS-01 0.95 4' Lightweight 580
TSPS-02 0.95 5' Lightweight 464
TSPS-03 0.95 5.5' Lightweight 421
TSPS-04 0.95 6' Lightweight 386
TSPS-05 0.95 6.5' Lightweight 357
TSPS-06 0.95 7' Lightweight 331
TSPS-07 0.95 8' Lightweight 290
TSPS-08 1.08 4' Regular 510
TSPS-08 1.08 5' Regular 408
TSPS-10 1.08 5.5' Regular 371
TSPS-11 1.08 6' Regular 340
TSPS-12 1.08 6.5' Regular 314
TSPS-13 1.08 7' Regular 291
TSPS-14 1.08 8' Regular 255
TSPS-15 1.08 9' Regular 226
TSPS-16 1.08 10' Regular 220
TSPS-17 1.25 4' Regular 440
TSPS-18 1.25 5' Regular 352
TSPS-19 1.25 5.5' Regular 320
TSPS-20 1.25 6' Regular 293
TSPS-21 1.25 6.5' Regular 271
TSPS-22 1.25 7' Regular 251
TSPS-23 1.25 8' Regular 220
TSPS-24 1.25 9' Regular 195
TSPS-25 1.25 10' Regular 176
TSPS-26 1.33 4' Heavy duty 414
TSPS-27 1.33 5' Heavy duty 331
TSPS-28 1.33 5.5' Heavy duty 301
TSPS-29 1.33 6' Heavy duty 276
TSPS-30 1.33 6.5' Heavy duty 251
TSPS-31 1.33 7' Heavy duty 236
TSPS-32 1.33 8' Heavy duty 207
TSPS-33 1.33 9' Heavy duty 184
TSPS-34 1.33 10' Heavy duty 165

Features of T studded post

  • Spades are welded on the bottom of the T studded post can supply greater holding power and grip the earth firmly.
  • Wide range of choice for weight and sizes to suit different applications.
  • Studded surface for easy fixation and installation of wire mesh fence.
  • Galvanized or bitumen coated can improve the corrosion and rust resistance performance.
  • Plastic post caps can prevent fence post from rains and other weather corrosion.
  • Rugged and easy to drive into any terrain.

Applications of T studded post

  • Raise and fix the wire mesh fences, including welded wire mesh fence, barbed wire fence.
  • Post for plants climbing and maintain the healthy growth.
Several lines of barbed wires are fastened to the black bitumen coated T studded post.
TSP-05: T studded post is used for supporting barbed wire.

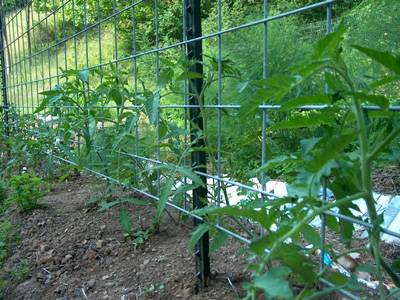

Welded wire mesh panel is fixed onto the T studded post and several plants growing on the panel.
TSP-06: T studded post is used with welded wire mesh panel for plant climbing.
