Welded Wire Container

Welded wire containers are widely used for general warehouse use, storage, security and shopping. The wire mesh containers are light and strong, they are made with galvanized welded wire or PVC coated welded wire (with various colors). Welded wire mesh containers have the types: with wheel, folding, double layer and more. And we can supply the containers as the special need.

Welded wire containers features:

  1. High visibility, self cleaning, stackable, collapsible, 4" under clearance allows for easy 4-way forklift access.
  2. Attractive & Durable, our polyester powder coat is available in a variety of colors.
  3. It has front drop gate for easy access.
  4. Robust wire formed construction.
  5. When folding, the wire mesh containers are flat for space-saving shipping and storage.
  6. Wire containers is long lasting and more economical storage materials.

Typical wire containers technological information:

Welded wire container 1
WWC-01: Welded wire container 1

Technological information

  • Outside dimension: 1030 mm × 840 mm × 850 mm, 950 mm × 760 mm × 700mm.
  • Wire diameter applied for this container: 6 mm.
  • Opening sizes: 50 mm × 50 mm.
  • Feet height: 100 mm.
  • Loading capacity: 1300 kg.
  • Volume: 0.52 m3.
  • Stack: 3.
  • Surface treatment of wire: Zinc coated.
  • Style: Half open containers.

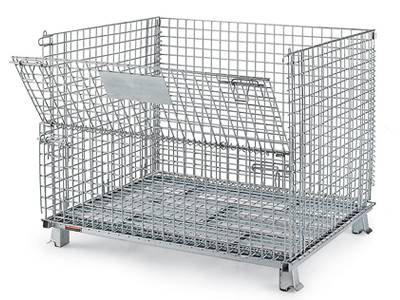

Welded wire container 2
WWC-02: Welded wire container 2

Technological information

  • Outside dimension: 1230 mm × 1040 mm × 900 mm, 1150 mm × 960 mm × 750 mm.
  • Wire diameter: 6.2 mm.
  • Opening sizes: 50 mm × 50 mm.
  • Feet height: 100 mm.
  • Loading capacity: 1700 kg.
  • Volume: 0.84 m3.
  • Stack: 3.
  • Surface treatment of wire: Zinc coated.
  • Style: Half open containers.

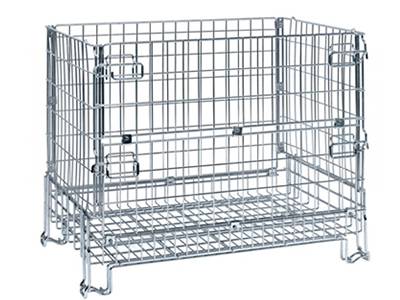

Welded wire container 3
WWC-03: Welded wire container 3

Technological information

  • Outside dimension: 1040 mm × 840 mm × 850 mm, 950 mm × 760 mm × 700 mm.
  • Wire diameter: 6 mm.
  • Opening sizes: 50 mm × 100 mm.
  • Feet height: 100 mm.
  • Loading capacity: 800 kg.
  • Weight: 46 kg.
  • Volume: 0.52 m3.
  • Stack: 3.
  • Surface treatment of wire: Zinc coated.
  • Style: Half open containers.

Other types of welded wire containers as follows, the specifications are available as request.

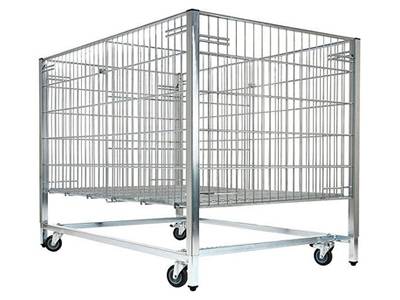

Welded wire container 4
WWC-04: Welded wire container 4

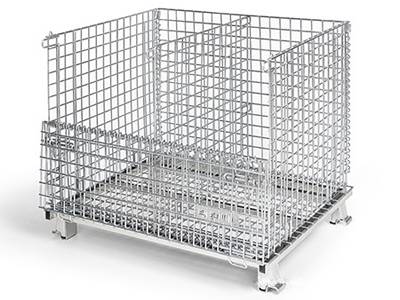

Welded wire container 5
WWC-05: Welded wire container 5
Welded wire container 6
WWC-06: Welded wire container 6
Welded wire container 7
WWC-07: Welded wire container 7

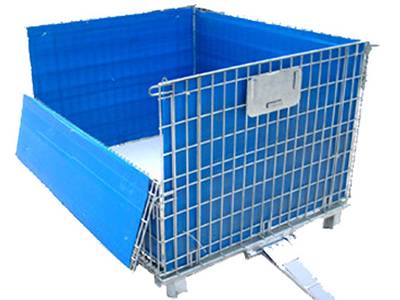

Welded wire container 8
WWC-08: Welded wire container 8

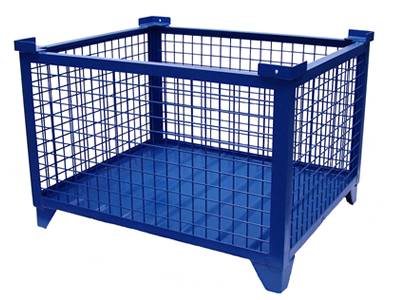

Welded wire container 9
WWC-09: Welded wire container 9

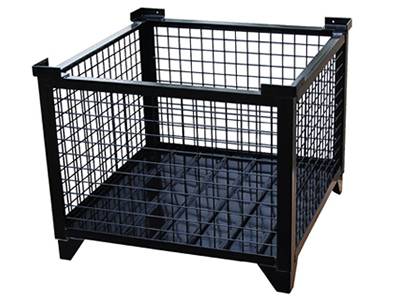

Welded wire container 10
WWC-10: Welded wire container 10

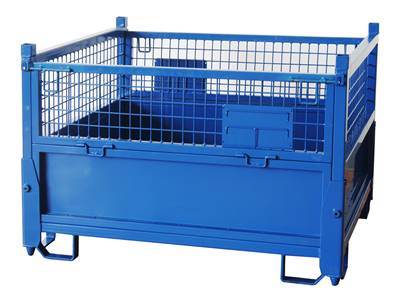

Welded wire container 11
WWC-11: Welded wire container 11

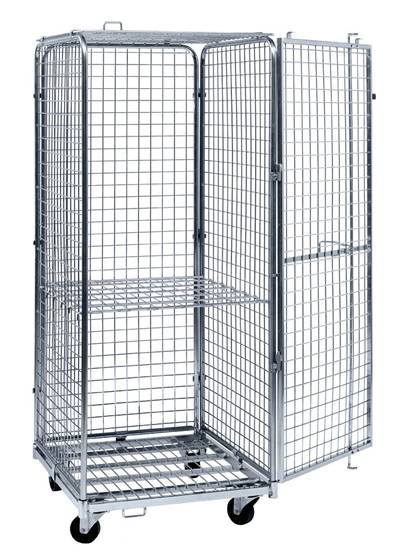

Welded wire container 12
WWC-12: Welded wire container 12

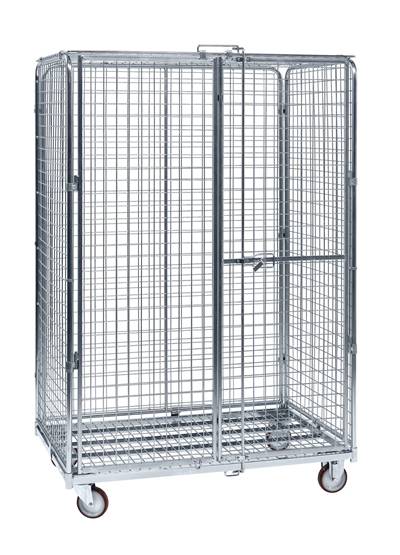

Welded wire container 13
WWC-13: Welded wire container 13

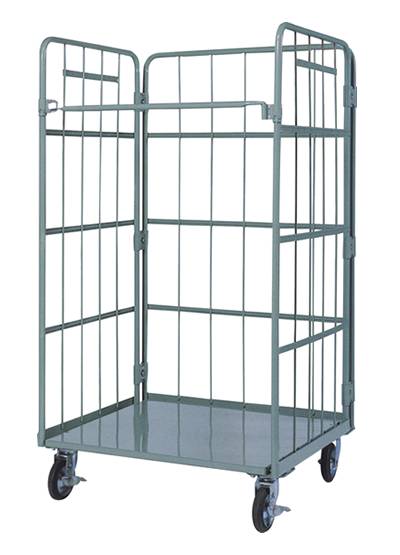

Welded wire container 14
WWC-14: Welded wire container 14

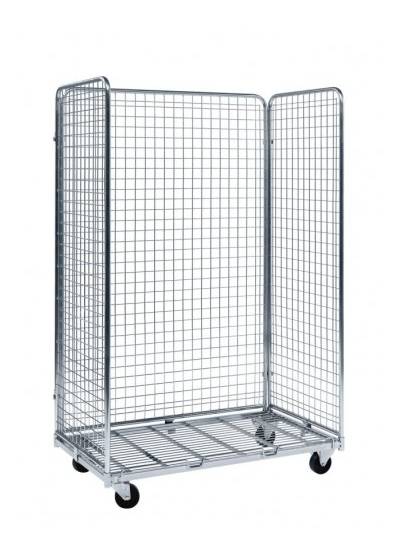

Welded wire container 15
WWC-15: Welded wire container 15
