Welded Razor Wire Fence - No Climbing, Cutting and Durable

Several pieces of curvy welded wire mesh fence with concertina razor wire for the factory protection.
WRWF-01: Welded razor wire fence can supply double protection for site security.

Welded razor wire fence is a type of high security wire mesh fence panel to be used in prison, military sites, airport and other places, which needs to prevent intruders in. It is combined with welded wire mesh fence panels and razor wires.

Welded wire mesh fence

Welded wire mesh fence is one of the most widely used type among all the security fences. It has curvy types, anti-climbing types, BRC types and others. Manufactured from low carbon steels and then welded and surface treated with galvanized or PVC coated to improve the corrosion and rust resistance performance. Welded wire mesh is widely used combined with razor wire to improve the security factor.

Curvy welded wire mesh fence

Curvy welded wire mesh fence, also called 3D security fence, curved welded wire mesh fence. It has two to four curves on the body of the wire mesh fence panel according to different fence height.

Specifications of curvy welded wire mesh fence

  • Material: low carbon steel wire or galvanized wire.
  • Wire diameter: 3 mm to 8 mm.
  • Mesh size: 50 mm × 100 mm, 50 mm× 150 mm, 50 mm ×200 mm, 75 mm × 150 mm, 75 mm × 200 mm.
  • Panel height: 0.63 m to 2.43 m. Specially is 3.5 m to 4 m.
  • Panel length: 2 m to 3 m.
  • Curve quantity: 2, 3 or 4.
  • Post type: peach post, square post, rectangular post and round post.
  • Surface treatment: hot dipped galvanized, PVC coated, powder coating.
  • Razor wire type: flat warp razor wire or concertina cross razor wire.
Several pieces of galvanized curvy welded wire mesh fence are installed in the residence.
WRWF-02: Galvanized curvy welded wire mesh fence.
Several pieces of green PVC coated curvy welded wire mesh fence are installed in the factory.
WRWF-03: PVC coated curvy welded wire mesh fence.
Several pieces of galvanized curvy welded wire mesh fences with razor wires on the top of the fence.
WRWF-04: Galvanized curvy welded wire mesh fence with razor wire.
Several pieces of PVC coated curvy welded wire mesh fences with razor wires on the top of the fence.
WRWF-05: PVC coated curvy welded wire mesh fence with razor wire.

Anti-climb fence

Anti-climb fence, also known as 358 mesh fence, it is an efficient security barrier fence to be used in high security requirements places. Compared with traditional welded wire mesh fence, the anti-climbing fence has smaller mesh sizes, which can prevent intruders from climbing up with fingers and toes. Additional, the thicker wires and conventional bots can prevent any tools from breaking the fence.

Specifications of anti-climb fence

  • Material: low carbon steel.
  • Surface treatment: hot dipped galvanized after welding and PVC coated after welding.
  • Wire diameter: 4 mm.
  • Mesh size:
    • 358 mesh fence: 76.2 mm × 12.7 mm.
    • Anti-climb fence: 70 mm × 8 mm.
  • Fence width: 2515 mm.
  • Fence height: 2.0 m to 5.2 m.
  • Post section: 60 mm × 60 mm, 80 mm × 80 mm, 100 mm × 100 mm, 120 mm × 120 mm.
  • Post plate thickness: 2.5 mm, 3.0 mm, 4.0 mm, 5.0 mm.
  • Colors: green or black. Special colors can be customized.

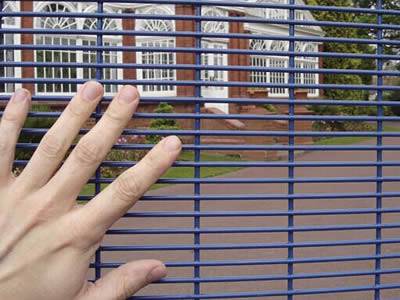

A hand is putting on the blue PVC coated anti-climb fence.
WRWF-06: PVC coated anti-climb fence.
A pair of hands are putting on the galvanized anti-climb fence.
WRWF-07: Galvanized anti-climb fence.
A piece of anti-climb fence with a curvy on the surface.
WRWF-08: Anti-climb fence can be curved for high security.
Several spiral razor wires on the top of anti-climb fence.
WRWF-09: Razor wire on the anti-climb fence can increase the safety factor.
Specifications of anti-climb fence
Fence height
(m)
Panel size (Height × Width)
(mm)
Fence Post (Height × Size × Thick)
(mm)
Clamp Bar (Height × Width × Thick)
(mm)
Inter or corner Clamp quantity
(PCS)
2.0 2007 ×2515 2700 × 60 × 60 × 2.5 2007 × 60 × 5.0 7 or 14
2.4 2400 × 2515 3100 × 60 × 60 × 2.5 2400 × 60 × 5.0 9 or 18
3.0 2997 ×2515 3800 × 80 × 80 × 2.5 2997 × 80 × 6.0 11 or 22
3.3 3302 ×2515 4200 × 80 × 80 × 2.5 3302 × 80 × 6.0 12 or 24
3.6 3607 ×2515 4500 × 100 × 100 × 3.0 3607 × 100 × 7.0 13 or 26
4.2 4204 × 2515 5200 × 100 × 100 × 4.0 4204 × 100 × 8.0 15 or 30
4.5 4496 × 2515 5500 × 100 × 100 × 5.0 4496 × 100 × 8.0 16 or 32
5.2 5207 ×2515 6200 × 120 × 120 × 5.0 5207 × 100 × 8.0 18 or 36

Razor wire

Razor wire, also called concertina razor wire. It is an effective and economical security barrier. It is made of galvanized steel blade to wrap around a galvanized core wire. The concertina razor wire can be made into different blade types to supply high security. The razor wire can prevent most of the intruders for it is hard and dangerous to break. Razor barbed wire can not only be used individually, it is widely used combined with other types of wire mesh fences, such as chain link fence, welded wire mesh fence to improve the safety factor. Additional, the razor wire is low cost, so it is an ideal choice with low cost and high security factor fence for site security.

Types of razor wire

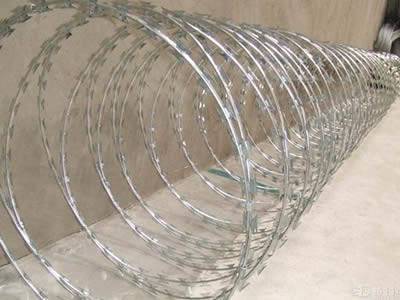

A roll of galvanized concertina razor wire on the ground.
WRWF-10: Galvanized razor wire.

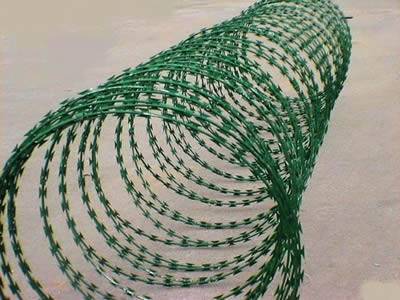

A roll of green PVC coated concertina razor wire on the ground.
WRWF-11: PVC coated razor wire.

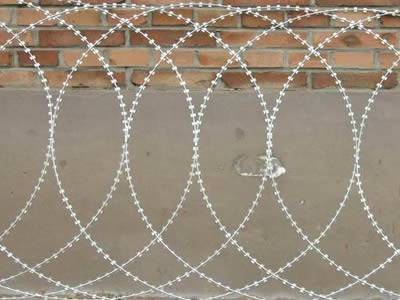

A piece of flat warp type razor wire is lying on the wall.
WRWF-12: Flat warp type razor wire.
A piece of welded straight type razor wire is lying on the wall.
WRWF-13: Straight type razor wire.

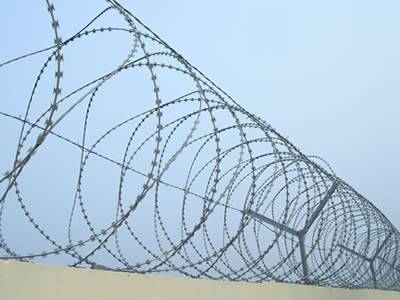

Spiral type razor wires are installed on the wall.
WRWF-14: Spiral type razor wire.

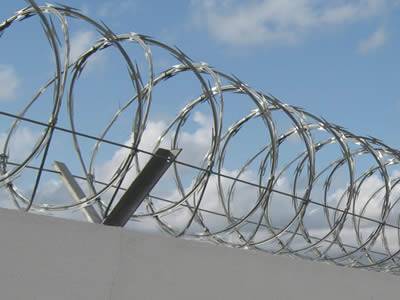

Concertina cross type razor wires are installed on the wall.
WRWF-15: Concertina type razor wire.
  • According to material.
    • Electric galvanized razor wire.
    • Hot dipped galvanized razor wire.
    • Stainless steel razor wire.
  • According to structure.
    • Spiral razor wire. The spiral coils are interconnected at several points in a certain pattern. It is much more efficient than single reinforced barbed tape and conventional barbed wire.
    • Straight razor wire. The straight type razor wire is combined with several straight barbed tapes, which can be installed quickly. It can not only save expenditure but also reach the result of frightening and stopping.
    • Concertina cross razor wire. It has continuous spiral which are fastened two razor wire loops together at various intervals with clips. Concertina cross razor wire has good appearance, high security and durable life. It is the most widely used type.
    • Flat warp razor wire. The coils are located in a flat surface and its coils are fastened together by the galvanized staples. It is more compact to use and less aggressive.
Common types of razor wire
Reference number Blade style Thickness
(mm)
Wire diameter
(mm)
Blade length
(mm)
Blade width
(mm)
Blade spacing
(mm)
BTO-12 A drawing of BTO-12 razor wire. 0.5 ± 0.05 2.5 ± 0.1 12 ± 1 15 ± 1 26 ± 1
BTO-15 A drawing of BTO-15 razor wire. 0.5 ± 0.05 2.5 ± 0.1 15 ± 1 15 ± 1 33 ± 1

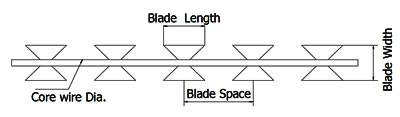

BTO-22 A drawing of BTO-22 razor wire. 0.5 ± 0.05 2.5 ± 0.1 22 ± 1 15 ± 1 34 ± 1
BTO-30 A drawing of BTO-30 razor wire. 0.5 ± 0.05 2.5 ± 0.1 30 ± 1 18 ± 1 45 ± 1
CBT-25 A drawing of CBT-25 razor wire. 0.5 ± 0.05 2.5 ± 0.1 25 ± 1 16 ± 1 40 ± 1
CBT-60 A drawing of CBT-60 razor wire. 0.6 ± 0.05 2.5 ± 0.1 60 ± 2 32 ± 1 100 ± 2
CBT-65 A drawing of CBT-65 razor wire. 0.6 ± 0.05 2.5 ± 0.1 65 ± 2 21 ± 1 100 ± 2
CBT refers to Concertina Barbed Tape.
BTO refers to Barbed Tape Obstacle.
Specifications of commonly used razor wire
Item Outside diameter
(mm)
Quantity of loops Standard length per coil
(m)
Type Notes
RZ-01 450 33 7-8 CBT-60, 65 Single coil
RZ-02 500 56 12-13 CBT-60, 65 Single coil
RZ-03 700 56 13-14 CBT-60, 65 Single coil
RZ-04 930 56 14-15 CBT-60, 65 Single coil
RZ-05 450 56 8-9 (3 clips) BTO-10, 12, 18, 22, 28, 30 Cross type
RZ-06 500 56 9-10 (3 clips) BTO-10, 12, 18, 22, 28, 30 Cross type
RZ-07 600 56 10-11 (3 clips) BTO-10, 12, 18, 22, 28, 30 Cross type
RZ-08 600 56 8-10 (5 clips) BTO-10, 12, 18, 22, 28, 30 Cross type
RZ-09 700 56 10-12 (5 clips) BTO-10, 12, 18, 22, 28, 30 Cross type
RZ-10 800 56 11-13 (5 clips) BTO-10, 12, 18, 22, 28, 30 Cross type
RZ-11 900 56 12-14 (5 clips) BTO-10, 12, 18, 22, 28, 30 Cross type
RZ-12 960 56 13-15 (5 clips) BTO-10, 12, 18, 22, 28, 30 Cross type
RZ-13 980 56 14-16 (5 clips) BTO-10, 12, 18, 22, 28, 30 Cross type

Applications of welded razor wire fence

Welded razor wire fence is widely used in the places, where need high security requirements, such as:

  • Airport.
  • Military site.
  • Prison.
  • Factory.
  • High class residences.
  • Secure hospitals.
  • Schools.
  • Parks.
Several welded razor wire are installed outside of the prison wall.
WRWF-16: Welded razor wire for prison protection.

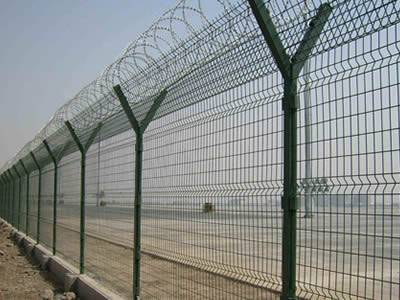

Several welded razor wire are installed surrounding the airport.
WRWF-17: Welded razor wire for airport protection.
Several welded razor wire are installed along the factory wall.
WRWF-18: Welded razor wire for factory protection.
Several welded razor wire are installed surrounding the farmland.
WRWF-19: Welded razor wire for farmland protection.
