Hog Wire Fence Panels Protect Livestock or Decorate Garden
HWF-1: Welded hog wire fence panel.
Hog wire fence with smooth galvanized finish surface (no sharp burrs) and narrower vertical spacing at the bottom and wider spacing at the top, is perfect material for livestock pen, such as for pig, goat, sheep or other large animals. Rigid welded hog wire panels give your livestock a clean and safe enclosure. Further more, this type feedlot wire panel won't break down or collapse when cattle, pigs, sheep or livestock run into or rub against it.
Welded wire hog panels may also be used for landscape, such as, with wood/steel frame for pool fence, railing fill mesh, garden fence, or acts as a trellis for climbing plants grown. The smaller mesh at bottom can keep your neighbor dog out.
Welded hog wire for railing panels:
- Materials: galvanized wire
- Wire size: 6 gauge
- Vertical wire spacing: 4"
- Horizontal wire spacing: 4"
- Panel size: 6' × 36", 8' × 36", and 6' × 60"
- Surface treatment: black powder coated finish
- Application: stairs, balconies, decks, pool fences, etc.

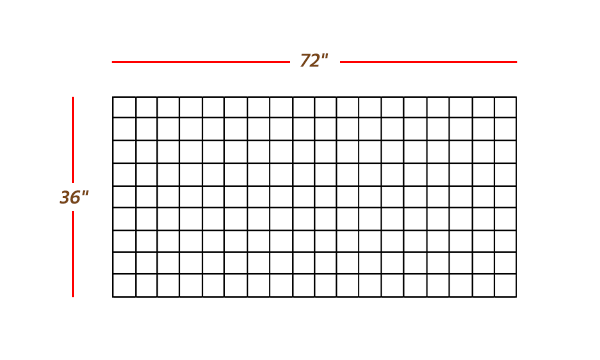

72" × 36" fence panel

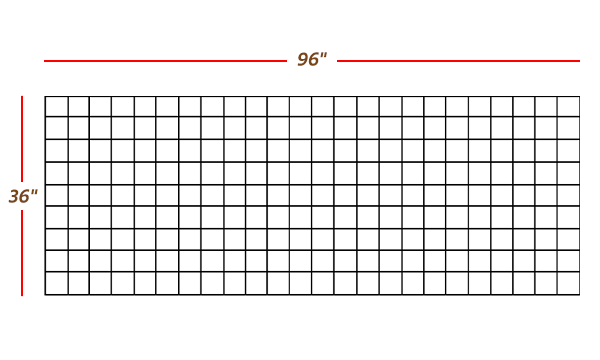

96" × 36" fence panel
Other Common Fence Types

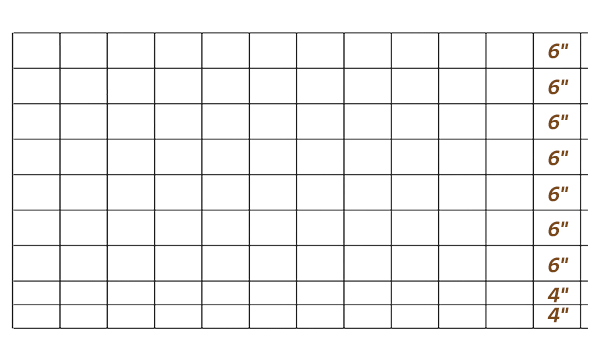

Cattle Panels
- Panel dimension: 16' × 50"
- Wire gauge: 4 gauge vertical rod, and 5 gauge horizontal rod
- Vertical wire spacing: 8"
- Horizontal wire spacing: 2 × 4", and 7 × 6"
- Material: galvanized wire
- Application: used as livestock, landscape, trellis, and garden fence

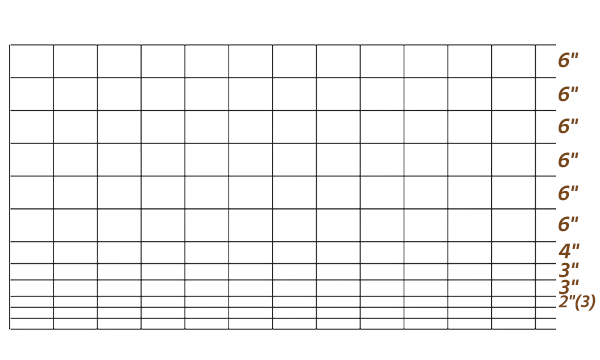

Combination Panels
- Panel dimension: 16' × 50"
- Wire gauge: 4 gauge
- Vertical wire spacing: 8"
- Horizontal wire spacing: 3 × 2", 2 × 3", 1 × 4", and 6 × 6"
- Material: galvanized wire
- Application: used as livestock, and landscape

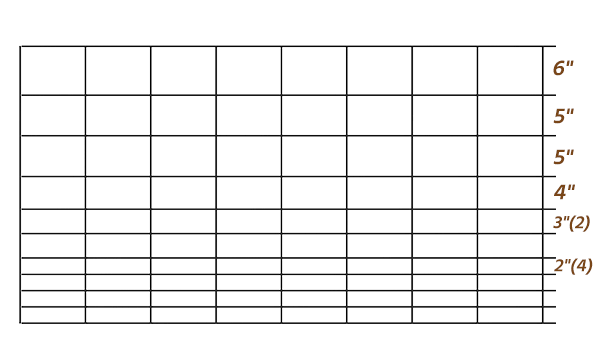

Hog Panels
- Panel dimension: 16' × 34"
- Wire gauge: 4 gauge
- Vertical wire spacing: 8"
- Horizontal wire spacing: 4 × 2", 2 × 3", 1 × 4", 2 × 5", and 1 × 6"
- Material: galvanized wire
- Application: used as livestock, and landscape

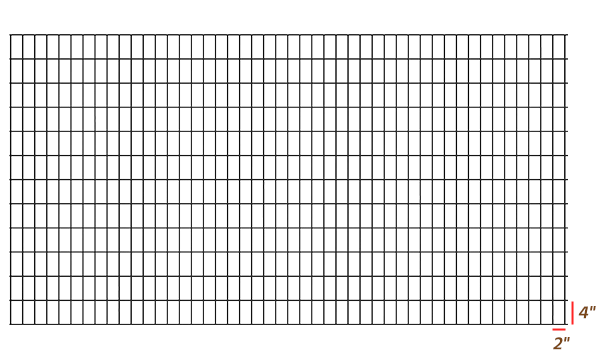

2" × 4" Horse Panels
- Panel dimension: 16' × 48", and 16' × 60"
- Wire gauge: 4 gauge
- Vertical wire spacing: 2"
- Horizontal wire spacing: 4"
- Material: heavily galvanized wire
- Application: used as livestock fencing, horse fencing, equestrian enclosures, and estate boundary fencing

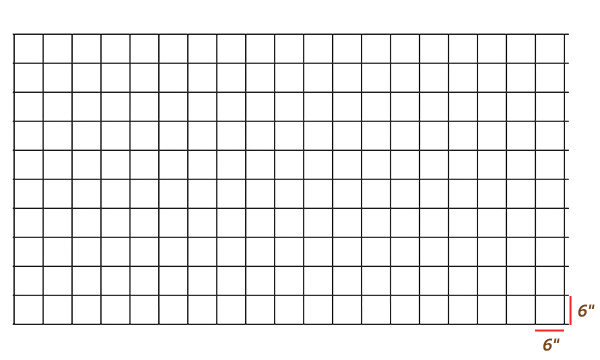

1 Gauge Bull Panels
- Panel dimension: 16' × 60"
- Wire gauge: 1 gauge
- Vertical wire spacing: 6"
- Horizontal wire spacing: 6"
- Material: galvanized wire
- Application: used as the ranch, and feed lot

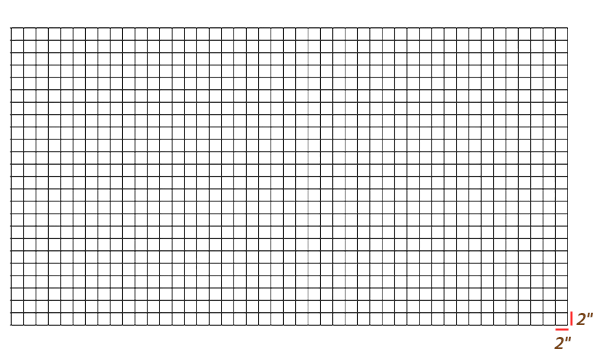

2" × 2" Utility Panels
- Panel dimension: 16' × 48"
- Wire gauge: 6 gauge
- Vertical wire spacing: 2"
- Horizontal wire spacing: 2"
- Material: galvanized wire
- Application: used as livestock fencing, landscape, working pens, temporary runs and pens
We can also offer another special specification of hog panels, which allows the clients to choose the best welded fence according to the size of the animal species.

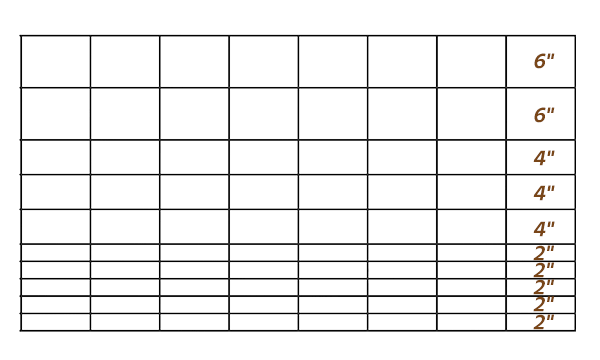

Special Hog Panels
- Panel dimension: 16' × 34"
- Wire gauge: 4 gauge
- Vertical wire spacing: 8"
- Horizontal wire spacing: 5 × 2", 3 × 4", and 2 × 6"
- Material: galvanized wire
- Application: used as livestock, and landscape
Welded Hog Wire Fence Features:
- Pros:
- Thick zinc coating, anti-rust, ant-corrosion.
- Smooth surface and smooth welded joints no-burr, can not hurt your livestock.
- Solid welded together, durable and strong.
- Resistant to break down and collapse from livestock rubbing against it.
- Preserves the view, creates an sense of open space.
- Keeps out larger animals such as dogs and deer.
- Welded wire panel is easy for installing and handling. Bolt cutter for cutting the panels.
- Hog wire fence is easy to erect, no stretching.
- Virtually maintenance free.
- Inexpensive - less than a wood fence.
- Cons:
- Edges can be sharp, and must be covered with trim.
- Does not provide privacy.
- Does not deter smaller pests.
HWF-2: Hog wire fence panels and wood posts for pig pen.

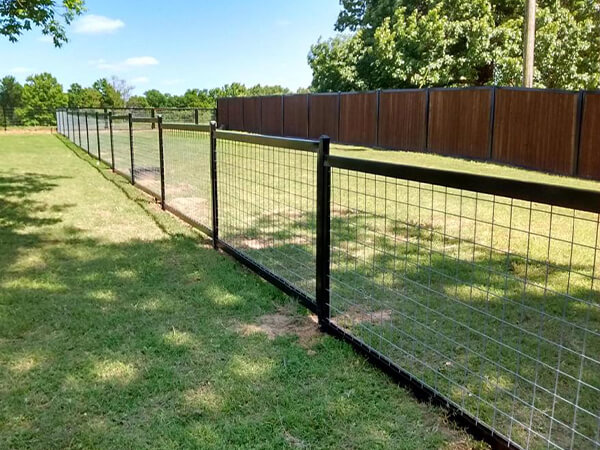

HWF-3: Hog wire fence panels as protective fence in farm.
HWF-4: Hog wire fence may used for flat area or sloping.
HWF-5: Hog wire fence for garden fence and gates.
Hog wire fence application: Hog wire fence panels are perfect for pig pens, corrals, feedlots, arenas and other use as the following:
- Hog wire panels for garden fencing, smaller mesh at bottom to keep out critters, and the wire seems to disappear.
- Hog wire panels complete with metal/wood post for house fence.
- For balcony deck railing design.
- Hog wire fencing with steel/wooden frame for pool fence design.
- Hog wire fencing trellis structure for vines, jasmine, clematis grown, climbing roses also can be tied against the wire.
- For hay stack protection.
- For dog play pen fence construction, give dog a play area without hindering the view of surrounding landscape.
