Welded Wire Cattle Fence - Solid Structure and Durable Life

Welded wire cattle fence

The welded wire cattle fence is installed on the post in the farm.
WWCF-01: Welded wire cattle fence is widely used in the farm and loafing areas.

The welded wire cattle fence is constructed from low carbon steel wire. The wire rods are welded at every intersection and are hot dipped galvanized after welding to improve the corrosion and rust resistance performance.

The welded wire cattle fence is designed with different mesh sizes at the bottom and top of the fence. This special design can keep cattle in the area, prevent the cattle from crawling out and prevent small animals from entering the area. Welded wire cattle fence is widely used in the loafing areas, corrals, feedlots, arenas and working pens.

Specifications of welded wire cattle fence

  • Material: low carbon steel wire.
  • Surface treatment:
    • Galvanized after welding. Hot dipped galvanized or electric galvanized.
    • Galvanized before welding. Hot dipped galvanized or electric galvanized.
  • Wire diameter: 4 gauge or 1/4" rod.
  • Line quantity: 10, 11, 12, 13 or 14.
  • Vertical wire spacing: 8".
  • Horizontal wire spacing: variable. See the table 1.
  • Panel height: 50" or 52".
Table 1: Specifications of welded wire cattle fence
Item Wire diameter Panel height Panel length Lines Vertical wire spacing Horizontal wire spacing
WWCFS-01 4 gauge 50" 16' 12 8" 2-2", 2-3", 1-4", 6-6"
WWCFS-02 4 gauge 50" 16' 10 8" 1-4", 8-6"
WWCFS-03 1/4" rod 52" 16' 14 8" 5-2", 3-4", 5-6"
WWCFS-04 1/4" rod 52" 16' 13 8" 3-2", 2-3", 1-4", 6-6"
WWCFS-05 1/4" rod 52" 16' 11 8" 4-4", 6-6"
WWCFS-06 1/4" rod 52" 16' 10 8" 1-4", 8-6"

Features of welded wire cattle fence

  • Closer mesh spacing in the bottom can prevent cattle from crawling out of the area and prevent small animals form entering the area.
  • High tensile strength structure can resist the high impact from cattle.
  • Galvanized surface treatment can improve the corrosion and rust resistance performance.
  • Weather resistance for durable and long service life.
  • Can be cut into any size to suit different using environments.
  • Easy to install and uninstall. Just fasten the welded wire cattle fence onto wood or steel post.
  • Smooth surface and without any burrs on the surface to protect cattle from hurting.
  • Simple structure and need no maintenance to save the maintenance cost.

Applications of welded wire cattle fence

Welded wire cattle fence is widely used in the farms, loafing areas, corrals, feedlots, arenas and working pens to raise the cattle, sheep, horse, hug and other animals or poultry.

The welded wire cattle fence can also be used in the gardens as the landscape fence to prevent animals from destroying the landscape.

Three cattle are locked in the area by welded wire cattle fence.
WWCF-02: Welded wire cattle fence is used for rearing cattle.

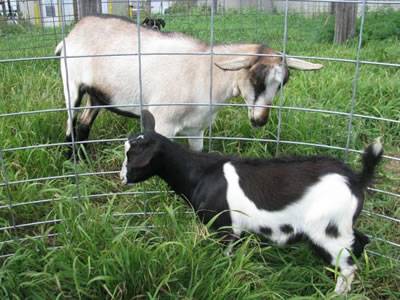

The welded wire cattle fence is separating a little sheep and a adult sheep.
WWCF-03: Welded wire cattle fence is used for rearing sheep.

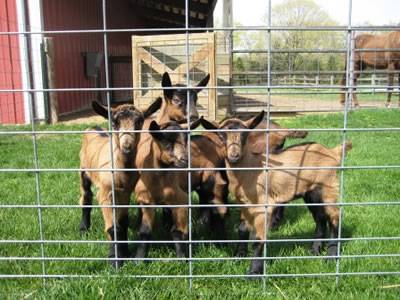

Several kid horses in the area which is enclosed by the welded wire cattle fence.
WWCF-04: Welded wire cattle fence can protect kid horse from crawling out.

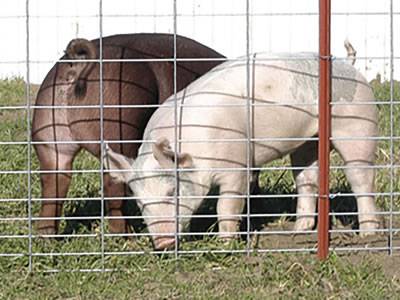

Two hogs in the area enclosed by the welded wire cattle fence.
WWCF-05: Welded wire cattle fence is used for hog rearing.

Woven wire cattle fence

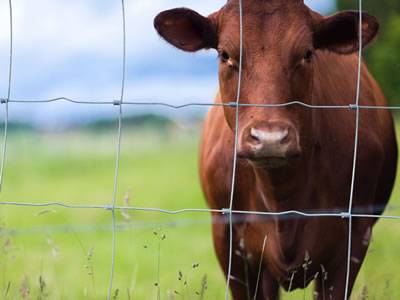

A cattle is in the farm area enclosed by the hinge knot cattle fence.
WWCF-06: Woven wire cattle fence is high strength to withstand high impact from cattle.

Woven wire cattle fence, also called field fence, cattle fence. It is a type of isolation and enclosure fence which is made of hot dipped galvanized steel wire or electric galvanized steel wires. The galvanized steel wires are woven knots at each intersection, which can provide high security to various livestock, such as cattle, horse, deer, hog and other animals. According to different standard, the woven wire cattle fence can be divided into different types:

  • According to material.
    • High tensile wire cattle fence.
    • Low carbon steel wire cattle fence.
  • According to the knots type.
    • Hinge joint cattle fence. Hinge joint cattle fence is the most widely used type, which twisted the wire onto each interaction to improve the tensile strength of the cattle fence.
    • Fixed knot cattle fence. The fixed knot cattle fence is designed with a third wire to tie the continuous vertical and horizontal wires together. The fixed knot can keep vertical and horizontal wires in place and improve the stability.
    • Square knot cattle fence. Square knot gives an extra vertical strength to withstand impact from large animals. It is ideal for rearing horse, cattle and other animals.
    • V mesh. The wires are run on a diagonal and wrapped around each of the horizontal wires to form a series of diamond weave pattern.

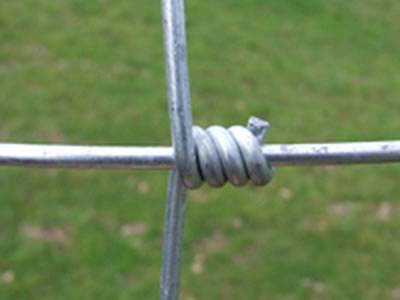

A detail of hinge joint of woven wire cattle fence.
WWCF-07: Hinge joint type cattle fence.

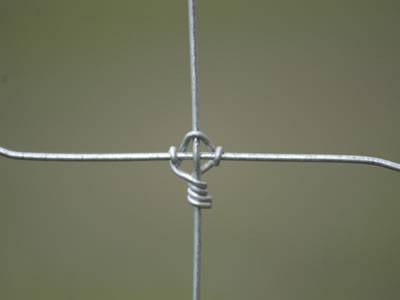

A detail of fixed joint of woven wire cattle fence.
WWCF-08: Fixed joint type cattle fence.

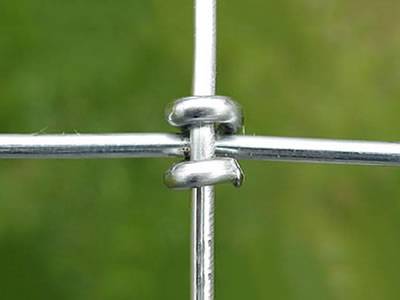

A detail of square joint of woven wire cattle fence.
WWCF-09: Square joint type cattle fence.

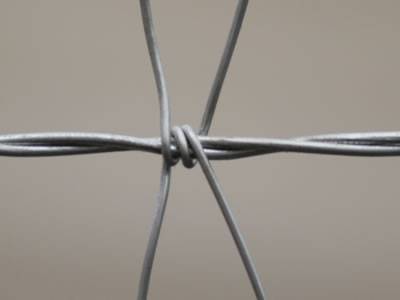

A detail of V mesh of woven wire cattle fence.
WWCF-10: V mesh type cattle fence.

Specifications of woven wire cattle fence

  • Material: high tensile steel wire or low carbon steel wire.
  • Surface treatment: electric galvanized or hot dipped galvanized.
  • Top and bottom wire diameter: 2.0 mm – 3.5 mm.
  • Inner wire diameter: 1.8 mm – 2.5 mm.
  • Vertical stay spacing: 15 cm or 30 cm.
  • Mesh size:
    • Vertical: 150 mm, 140 mm, 130 mm, 110 mm, 100 mm, 80 mm, 60 mm.
    • Horizontal: 150 mm, 180 mm, 200 mm, 400 mm, 500 mm, 600 mm, 650 mm.
  • Length: 30 m – 100 m.
Table 2: Common specifications of woven wire cattle fence
Item Style Mesh size
(from bottom to top)
(mm)		 Top & bottom wire diameter
(mm)		 Inner wire diameter
(mm)		 Weight
(kg/roll)
CFWC-01 7/150/813/50 102+114+127+140+152+178 2.5 2 19.3
CFWC-02 8/150/813/50 89+89+102+114+127+140+152 2.5 2 20.8
CFWC-03 8/150/902/50 89+102+114+127+140+152+178 2.5 2 21.6
CFWC-04 8/150/1016/50 102+114+127+140+152+178+203 2.5 2 22.6
CFWC-05 8/150/1143/50 114+127+140+152+178+203+229 2.5 2 23.6
CFWC-06 9/150/991/50 89+89+102+114+127+140+152+178 2.5 2 23.9
CFWC-07 9/150/1245/50 102+114+127+140+152+178+203+229 2.5 2 26
CFWC-08 10/150/1194/50 89+89+102+114+127+140+152+178+203 2.5 2 27.3
CFWC-09 10/150/1334/50 89+102+114+127+140+152+178+203+229 2.5 2 28.4
CFWC-10 11/150/1423/50 89+89+102+114+127+140+152+178+203+229 2.5 2 30.8
Table 3: Specifications of V mesh cattle fence.
Item Horizontal wire diameter Vertical wire diameter Top & bottom wire diameter Diamond spacing Fence height
CFVN-01 12.5 gauge 14 gauge 13 gauge 2" × 4" 50"
CFVN-02 12.5 gauge 14 gauge 13 gauge 2" × 4" 58"

Features of woven wire cattle fence

  • No welding point. It will not loose when cut the fences into pieces.
  • Good corrosion and rust resistance.
  • High strength to resist the high impact from animals.
  • Smooth surface will not hurt the animals.
  • Closer meshes at the bottom can prevent kid animals from crawling out.
  • Weather resistance for durable and long service life.

Applications of woven wire cattle fence

Woven wire cattle fence is widely used in farm and loafing areas for rearing cattle, horse, hog, chicken and other animals or poultry.

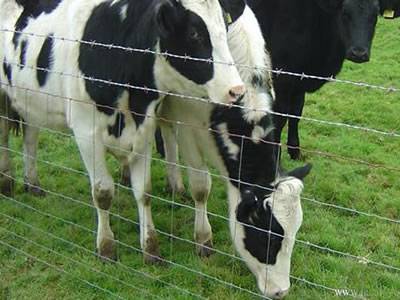

Three cattle on the grassland and enclosed by the woven wire cattle fence and barbed wire.
WWCF-11: Woven wire cattle fence for cattle rearing.

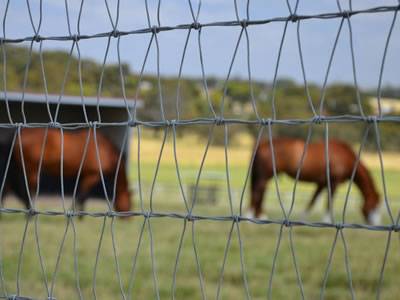

Two horses are in the area enclosed by the V mesh cattle fence.
WWCF-12: V mesh cattle fence for rearing horse.

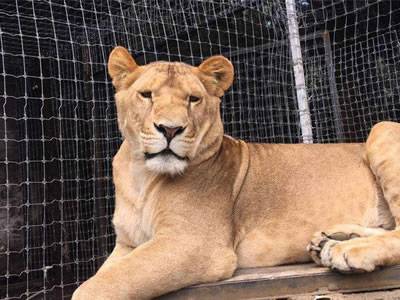

Woven wire cattle fence are formed an cage and a lion in it.
WWCF-13: Woven wire cattle fence for rearing lion.

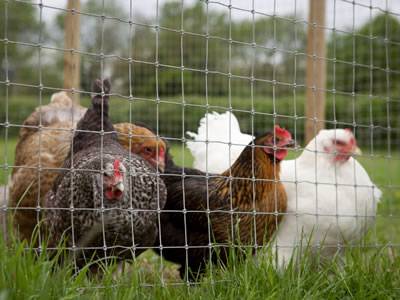

Several chickens on the grassland with woven wire cattle fence surround the grassland.
WWCF-14: Woven wire cattle fence for rearing poultry.
