Star Picket - Specialized for Cattle Fence and Barbed Wire

A piece of black bitumen star picket on the gray background.
SP-01: Star picket is high strength to holding wire mesh fence panels.

Star picket, also called Y post, is a widely used post type to raise and support wire mesh fences. The classical application is used with cattle fence or field fence. Star picket, as its name says, it has three-pointed star shaped cross section. But the structure is also different.

Structure classification of star picket

  • According to the surface:
    • Y post with holes. There are consistent holes on the surface, which is commonly used to fastening the steel wire lines.
    • Y post with teeth. There are consistent teeth shaped gap on the surface, which is easy to fasten the wire mesh panels.
  • According to the end types:
    • Tapered ends Y post. It is easy for installation.
    • Plain head Y post. It is easy for hammering the post into ground.

Specifications of star picket

  • Material: low carbon steel or hot rolled steel.
  • Surface treatment: galvanized, black bitumen coated, PVC coated or oven-baked enamel paint.
  • Thickness: 2 mm to 6 mm for choice.
  • Package: 10 pieces per bundle, 50 bundle per pallet.

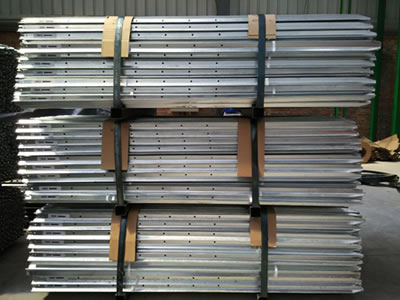

Three pallets of galvanized star pickets with consistent holes on the ground.
SP-02: Hole type star picket.

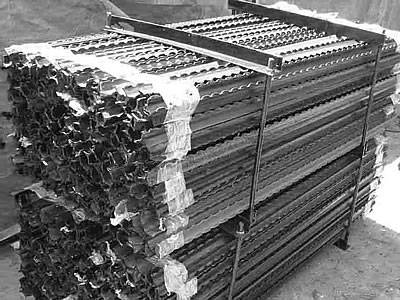

Two pallets of star pickets with teeth on the surface.
SP-03: Teeth type star picket.
Star picket specifications
Item Weight
(kg/m)
Length
(m)
Quantity
(pcs/mt)
SPS-01 1.58 0.45 1406
SPS-02 1.58 0.60 1054
SPS-03 1.58 0.90 703
SPS-04 1.58 1.35 468
SPS-05 1.58 1.50 421
SPS-06 1.58 1.65 386
SPS-07 1.58 1.80 351
SPS-08 1.58 2.10 301
SPS-09 1.58 2.40 263
SPS-10 1.86 0.45 1195
SPS-11 1.86 0.60 896
SPS-12 1.86 0.90 597
SPS-13 1.86 1.35 398
SPS-14 1.86 1.50 358
SPS-15 1.86 1.65 326
SPS-16 1.86 1.80 299
SPS-17 1.86 2.10 256
SPS-18 1.86 2.40 224
SPS-19 1.90 0.45 1170
SPS-20 1.90 0.60 877
SPS-21 1.90 0.90 585
SPS-22 1.90 1.35 390
SPS-23 1.90 1.50 351
SPS-24 1.90 1.65 319
SPS-25 1.90 1.80 292
SPS-26 1.90 2.10 251
SPS-27 1.90 2.40 219
SPS-28 2.04 0.45 1089
SPS-29 2.04 0.60 817
SPS-30 2.04 0.90 545
SPS-31 2.04 1.35 363
SPS-32 2.04 1.50 326
SPS-33 2.04 1.65 271
SPS-34 2.04 1.80 272
SPS-35 2.04 2.10 233
SPS-36 2.04 2.40 204

Features of star picket

  • High strength.
  • Easy installation.
  • Fix almost all wire mesh fence panels.
  • Corrosion and rust resistance.
  • Withstand extreme weather or high wind forces.
  • Durable and long service life.
  • Low maintenance cost.

Applications of star picket

  • Hole type star picket is commonly used to fasten steel wire lines or barbed wires.
  • Teeth type star picket is widely used to fasten all types of steel wire mesh fences, including welded wire mesh fence panel and cattle fences.
Galvanized star pickets on the grassland fastening barbed wire.
SP-04: Star picket for fastening barbed wire.

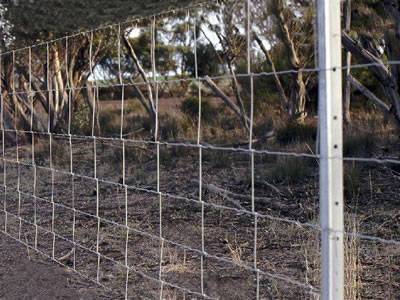

A galvanized star picket is fastening a piece of galvanized hinged joint cattle fence.
SP-05: Star picket for fastening cattle fence.
