| Required item | Full description | Unit | Quantity |
|---|---|---|---|
| Padlock: shackle clearance 50 mm, dia 9.5 mm. | Padlock: shackle clearance 50 mm, shackle diameter 9.5 mm, body size 50.8 mm × 44.5 mm × 19.05 mm, solid steel, hardened body and shackle. | EA | 50 |
| Bolt, M10 × 40 mm, anti-theft, galvanized. | Ml0 × 40 mm bolt with anti-theft nut & washer galvanized. | NBR | 200 |
| Clip galvanized heavy duty | Heavy duty galvanized clip to connect overlapped mesh. | EA | 10000 |
| Link chain welded mild steel, size 5 mm × 28 mm. | Welded mild steel straight link chain, size 5 mm × 28 mm (wire dia. 5 mm, inside link length 28 mm, width 11 mm). Finishing: polished, bright zinc, hot galvanized. Supplied in meters. Test loaded: max. 160 kg. Standard: Japanese standard, DIN766, DIN763, DIN5685, American ASTM80, NACM8 4/90: U.K standard. |
m | 50 |
| Galvanized mesh: polyester coat, 1.9 m × 3.2 m. | Polyester coated galvanized welded wire mesh 200 mm × 500 mm × 4.5 mm size: 1.9 m × 3.2 m. | pm | 800 |
| Galvanized mesh: polyester coat, 1.25 m × 3.2 m. | Polyester coated galvanized welded wire: 200 mm × 500 mm × 4.5 mm, mesh size: 1.25 m × 3.2 m cranked. | pm | 64 |
| Galvanized mesh: polyester coat, 1.0 m × 3.2 m. | Polyester coated galvanized welded wire: 200 mm × 500 mm × 4.5 mm, mesh size: 1.0 m × 3.2 m cranked. | pm | 64 |
| Galvanized mesh: polyester coat, 0.7 m × 2.7 m. | Polyester coated galvanized welded wire: 200 mm × 500 mm × 4.5 mm, mesh size: 0.7 m × 2.7 m anti - digging. | pm | 14 |
| Concertina, galvanized. | Concertina, galvanized (15 m/roll). | EA | 30 |
| Post galvanized 60 mm × 60 mm × 25 mm. | Post od 60 mm × 60 mm × 25 mm; galvanized 2.5 m long crank 500 mm long. | EA | 20 |
| Strut post, galvanized 60 mm × 60 mm × 25 mm. | Strut post od - 60 mm × 60 mm × 25 mm; galvanized 2.5 m long plate welded on top. | EA | 10 |

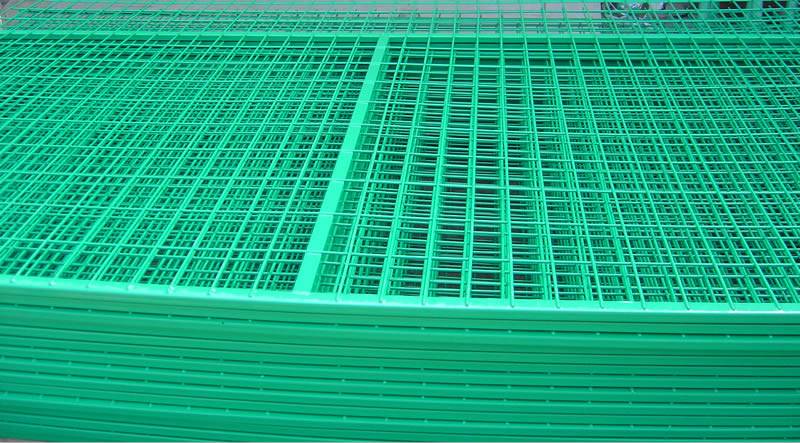

Green polyester coated galvanized welded wire mesh fence with heavy tube frame.

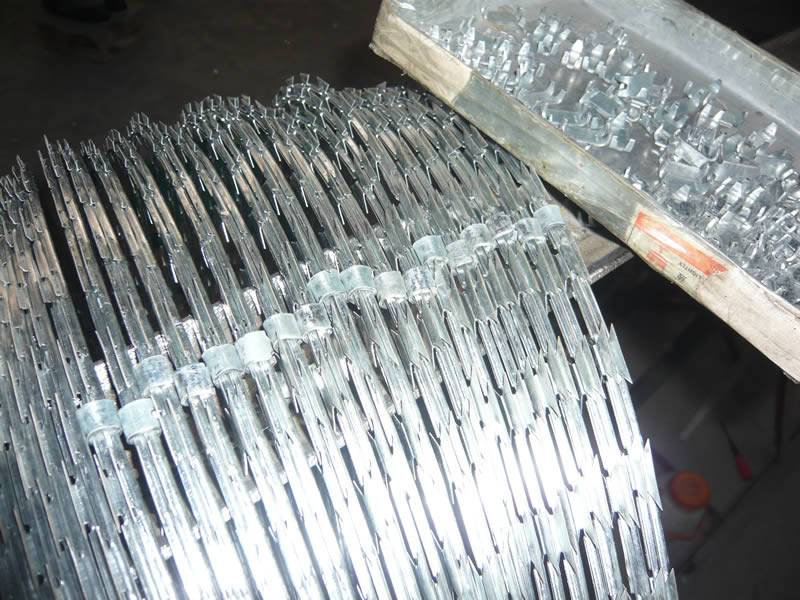

Galvanized razor concertina coils and clips .
