| Item | Description |
|---|---|
| Supply of material | |
| 1 | Taper post |
| 3.6 m long × 85 mm - 45 mm, depth: 85 mm. Including locking recess mechanism. Posts sealed with UV stabilized polymer cap including 700 mm × 5 mm T-bracket. Finish: hot dipped galvanized, then marine fusion bond coated. |
|
| 2 | Corner post |
| 3.6 m long × 152 mm × 152 mm. Posts sealed with UV stabilized polymer cap including 700 mm × 5 mm T-bracket. Finish: hot dipped galvanized, then marine fusion bond coated. |
|
| 3 | Weld mesh panel |
| 3 m high × 3.297 m wide panel wire with aperture size (centers) @ 75 mm × 9.5 mm with hardened vertical framework. Panel formation: panel reinforced with 6 mm × 50 mm deep 'V' formation horizontal recessed bands, (rigidity). Integrated modular rail. 2 mm × 75 mm 70˚ flanges along sides (internal fixtures - anti vandal), (allowing for flush post and panel finish, 48 line wire secure connection, locking recess mechanism) and 2 × 30˚ flanges along top and toe (arrow-straight edges, inter-graded angle). 16 × single comb clamps. 8 × double comb clamps. 12 × anti-scales 56 × tech bolts. Finish: galvanized, then marine fusion bond coated. |
|
| 4 | 730 mm ripper razor coil |
| 10 m stretch, stock no 5660-99-371-1515. | |
| 5 | Pipeline casing |
| 4 m × 50 mm × 50 mm × 5 mm flat bar with 20 × anti-tamper bolts. | |
| 6 | Pedestrian gate |
| 3 m high × 1.2 m with 730 mm ripper coil. | |
| 7 | Vehicle gate (D/L swing) |
| 3 m high × 7.5 m with 730 mm ripper coil. | |
| 8 | Padlock grade 6 |

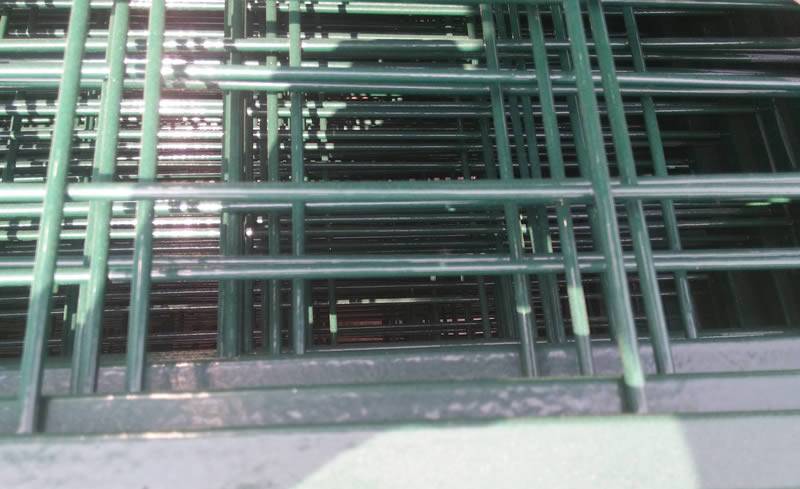

Powder painted welded steel fence panels.

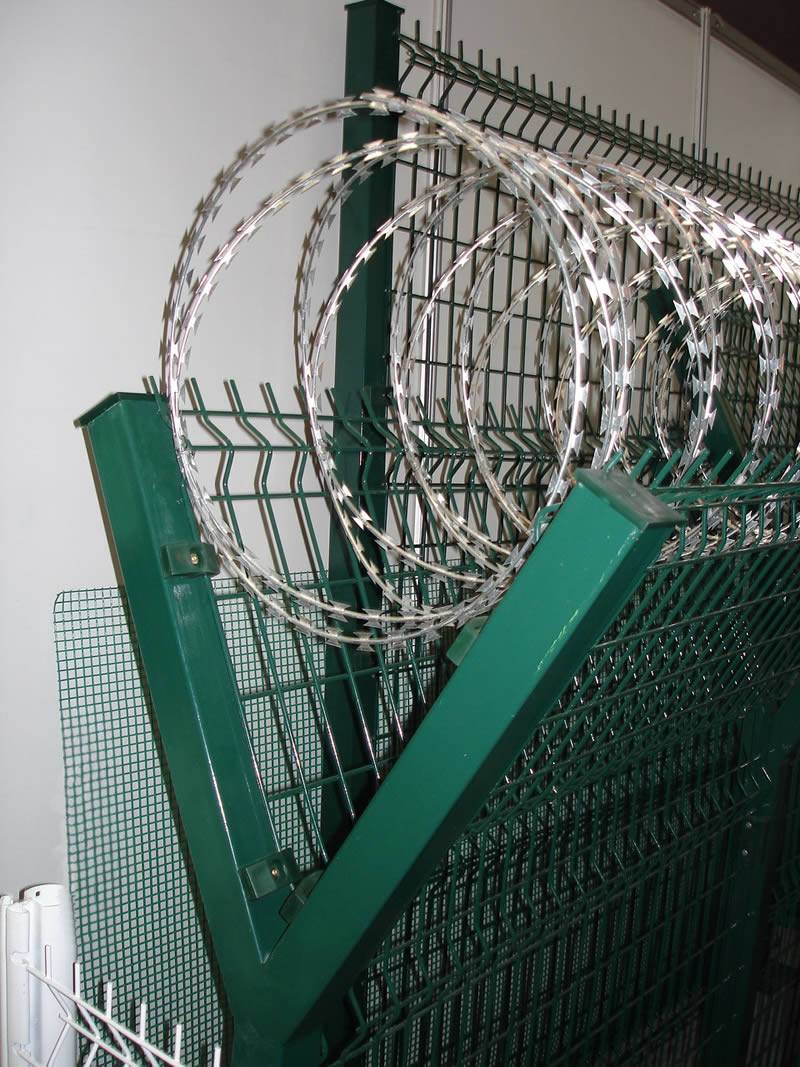

galvanized concertina wire and welded mesh fence with Y post for security fence.
